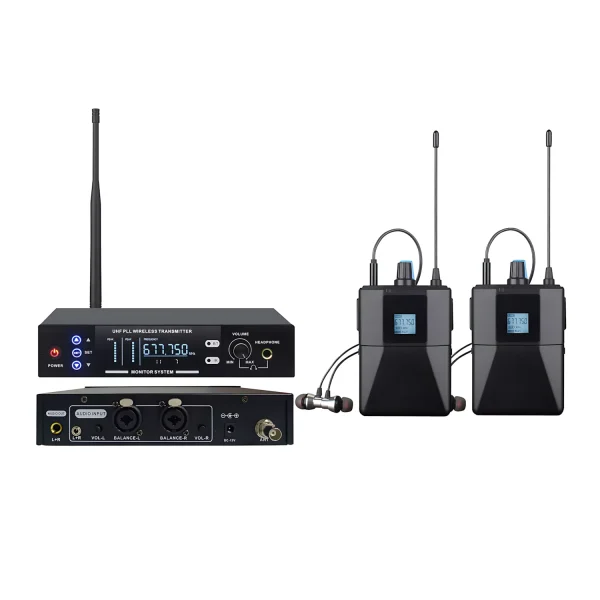

UHF wireless stereo monitoring, 200 frequency points, 1/2U
Added to Wishlist
Added to Wishlist

See your favorite product on Wishlist

View My Wishlist Close

UHF wireless stereo monitoring, 200 frequency points, 1/2U

Monitoring transmitter :200 transmission frequency points
Infrared frequency matching, unlimited matching of waist bags

SKU: 0804003＿MM-202-P05E Categories: ,

Description

Balanced output: 0-300mV Audio output: 0-300mV
Frequency range: 610MHz-680MHz
Sensitivity: 10dBuV (75dB S/N) Adjustment method: FM
Maximum frequency offset: ±45KHz The usage distance is 150 meters
Housing material: Metal panel nFrequency response :50Hz to 15KHz±3dB nSensitivity :7dBuV
Frequency stability :±0.005% AF input :XLR, φ6.35mm jack
Comprehensive signal-to-noise ratio :>94 db(1KHZ-A) Headphone output :q6.35mm stereo socket
Comprehensive T.H.D: less than 3% when <1KHz; Operation mode: Manual adjustment; Headphone load impedance :216Ω Output socket :q3.5mm stereo headphone socket; Maximum deviation :±48KHz Current consumption: DC 12V/250mA Volume output adjustment: Adjust when in use; 1/2U transmitter *1 Monitoring and receiving waist bag *2 Switching power supply *1 Transmitting antenna *1
